1. Tecnología de control inteligente de un solo chip con CPU dual, control por microcomputadora, diseño humanizado
2. Salida de energía CA de onda sinusoidal pura de alta calidad, con fuerte capacidad de carga, amplio rango de aplicación.
3. Con una función de protección perfecta, mejora enormemente la confiabilidad.
4. Adopte el control centralizado de la CPU y la tecnología SMT.
5. Funcionamiento estable, baja distorsión, sin ruido, sin contaminación, fuerte resistencia al impacto de la carga, funcionamiento sencillo, larga vida útil, estado de funcionamiento de la pantalla LCD/LED del menú del panel.
6. Función de carga de tres etapas con selección del tipo de batería (opcional)
7. Protección contra sobretensión y subtensión de la batería
8. Conversión automática de la red estatal (opcional)
9. Puede reanudar automáticamente el funcionamiento después de que el subvoltaje o el sobrevoltaje cambien a la normalidad.
10. Alta eficiencia de conversión, alta potencia instantánea y baja pérdida de carga.
11. Puede lograr la conexión del generador y la batería externa.

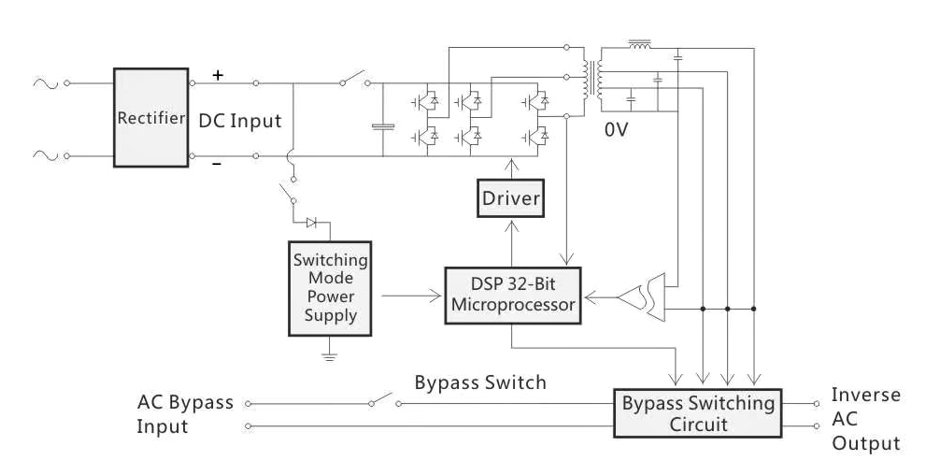

Diagrama:
Inversor fuera de la red 3kw-20kw trifásico Descripción Parámetros técnicos:
| Mode | XYH-3000T | XYH-5000T | XYH-6000T | XYH-8000T | XYH-10000T | XYH-15000T | XYH-20000T |
| Rated power | 3kw | 5kw | 6kw | 8kw | 10kw | 15kw | 20kw |
| Max. discharge current | 81.7A | 136A | 163A | 109A | 136A | 163A | 136A |
| Input Battery Voltage | 48V | 48V | 48V | 96V | 96V | 120V | 192V |
| Input grid AC voltage | 380/400/415Vac 50/60hz | ||||||
| Output AC voltage | Three-phase 380/400/415Vac | ||||||
| Output current | 4.5A*3 | 7.6A*3 | 9A*3 | 12A*3 | 15A*3 | 23A*3 | 30A*3 |
| Output frequency | 50/60hz | ||||||
| Size(W*L*H)mm | 350*600*650 | 350*600*650 | 350*600*650 | 400*700*740 | 400*700*740 | 400*700*740 | 400*700*850 |
| Weight(Kg) | 73 | 83 | 90 | 100 | 125 | 143 | 150 |
| General data | |||||||
| Conversion time | 20ms~1s | ||||||
| Nominal voltage | ±1%（Steady state load），±3%（Load fluctuation） | ||||||
| Output waveform | Pure sine wave | ||||||
| Current peak ratio | 3：1 MAX | ||||||
| THD | Linear load < 3%; nonlinear load < 5% | ||||||
| Standby power | <20W | ||||||
| Overload capacity | >120%10s; >150%:5ms | ||||||
| Protective function | ＜±5% | ||||||
| Inversion efficiency | >94% | ||||||
| Balance load voltage | ＜±1%；＜±5%（Unbalanced load voltage） | ||||||
| Protect function | Undervoltage protection of battery,state grid over voltage and undervoltage,inverter overload.overvoltage,over temperature,short circuit,automatic recovery after over voltage and undervoltage changing to normal. | ||||||
| communication interface | RS232，（485、Remote Control,Options） | ||||||
| Operating temperature | -10～60℃ | ||||||
| Relative humidity (non condensing) | 30%～90% | ||||||
| Operating altitude | ＜1000Meters（every increased 1000Meters decrease power1%，highest5000Meters） | ||||||
| （maximum） | |||||||
| cooling method | Forced air cooling | ||||||
| Noise | ≤55dB（Depending on load and temperature）Distance to machine1M | ||||||
| Easy maintenance | The front / upper / left and right sides can be opened. | ||||||
Off Grid Inverter 30kw-200kw three phase Description Technical Parameters:
| Mode | XYH-30000T | XYH-50000T | XYH-60000T | XYH-80000T | XYH-100000T | XYH-150000T | XYH-200000T |
| Rated power | 30kw | 50kw | 60kw | 80kw | 100kw | 150kw | 200kw |
| Max. discharge current | 163A | 182A | 206A | 213A | 266A | 399A | 531A |
| Input Battery Voltage | 240V | 360V | 384V | 384V | 384V | 384V | 384V |
| Input grid AC voltage | 380/400/415Vac 50/60hz | ||||||
| Output AC voltage | Three-phase 380/400/415Vac | ||||||
| Output current | 45A*3 | 75A*3 | 91A*3 | 121A*3 | 151A*3 | 227A*3 | 303A*3 |
| Output frequency | 50/60hz | ||||||
| Size(W*L*H)mm | 600*700*1360 | 600*800*1800 | 600*800*1800 | 700*800*1960 | 700*800*1960 | 700*800*2200 | 800*1000*2200 |
| Weight(Kg) | 298 | 380 | 390 | 470 | 578 | 700 | 1400 |
| General data | |||||||
| Conversion time | 20ms~1s | ||||||
| Nominal voltage | ±1%（Steady state load），±3%（Load fluctuation） | ||||||
| Output waveform | Pure sine wave | ||||||
| Current peak ratio | 3：1 MAX | ||||||
| THD | Linear load < 3%; nonlinear load < 5% | ||||||
| Standby power | <20W | ||||||
| Overload capacity | >120%10s; >150%:5ms | ||||||
| Protective function | ＜±5% | ||||||
| Inversion efficiency | >94% | ||||||
| Balance load voltage | ＜±1%；＜±5%（Unbalanced load voltage） | ||||||
| Protect function | Undervoltage protection of battery,state grid over voltage and undervoltage,inverter overload.overvoltage,over temperature,short circuit,automatic recovery after over voltage and undervoltage changing to normal. | ||||||
| communication interface | RS232，（485、Remote Control,Options） | ||||||
| Operating temperature | -10～60℃ | ||||||
| Relative humidity (non condensing) | 30%～90% | ||||||
| Operating altitude | ＜1000Meters（every increased 1000Meters decrease power1%，highest5000Meters） | ||||||
| （maximum） | |||||||
| cooling method | Forced air cooling | ||||||
| Noise | ≤55dB（Depending on load and temperature）Distance to machine1M | ||||||
| Easy maintenance | The front / upper / left and right sides can be opened. | ||||||
Off Grid Inverter 300kw-3000kw three phase Description Technical Parameters:
| Model | XNSA480- 300KS | XNSA480- 500KS | XNSA480- 800KS | XNSA480- 1000KS | XNSA480- 1500KS | XNSA480- 3000KS | |
| DC input | Input rating voltage(Vdc) | 480 | |||||
| DC input | Input rating current(A) | 694 | 1157 | 1851 | 2314 | 3437 | 6875 |
| DC input | Input DC voltage allowing range(Vdc) | 420~800 | |||||
| AC output | Output rating capacity(KW) | 300 | 500 | 800 | 1000 | 1500 | 3000 |
| AC output | Output rating voltage and frequency | AC380V Vac, 50Hz(Three-phase four-wire) | |||||
| AC output | Output rating current(A) | 455.8 | 759.7 | 1215.5 | 1519.4 | 2279 | 4558 |
| AC output | Output voltage precision(V) | AC380V±3% | |||||
| AC output | Output frequency precision(Hz) | 50hz±0.05 | |||||
| AC output | Wave distortion(THD) | ≤1% | |||||
| AC output | Dynamic response | 3% | |||||
| AC output | Power factor(PF) | 0.8leading-1-0.8lagging, adjustable | |||||
| AC output | Overload ability | 150%,10 seconds | |||||
| AC output | Crest factor(CF) | 3:01 | |||||
| AC output | Inverted efficiency | 95% | |||||
| Insulation strength | 1500 Vac,1minute | ||||||
| Noise (1meter) | ≤55dB | ||||||
| Using condition temperature | -25℃~+55℃ | ||||||
| Humidity | 0-95%，non-condensing | ||||||
| Altitude (m) | ≤6000 | ||||||
| Protection function | Input reversing protection,input low-voltage protection,output over-load protection,output short-circuit protection, over-heat protection | ||||||
