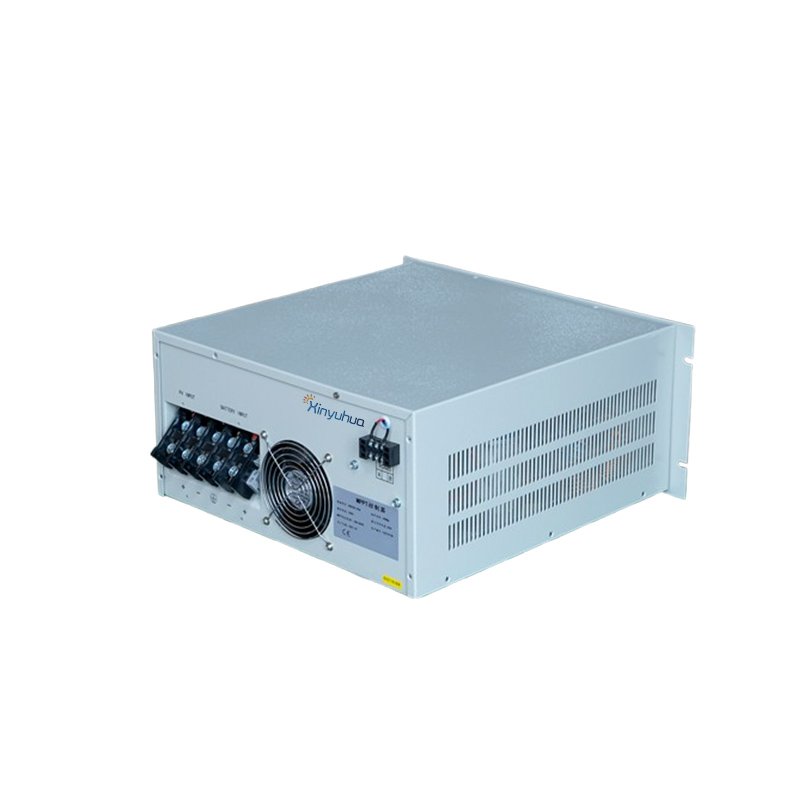

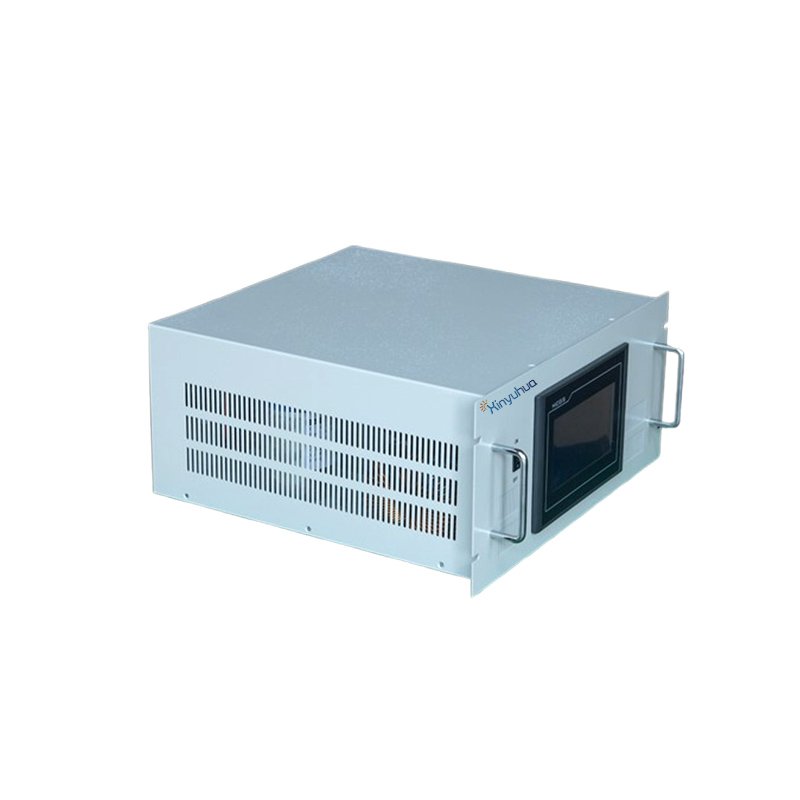

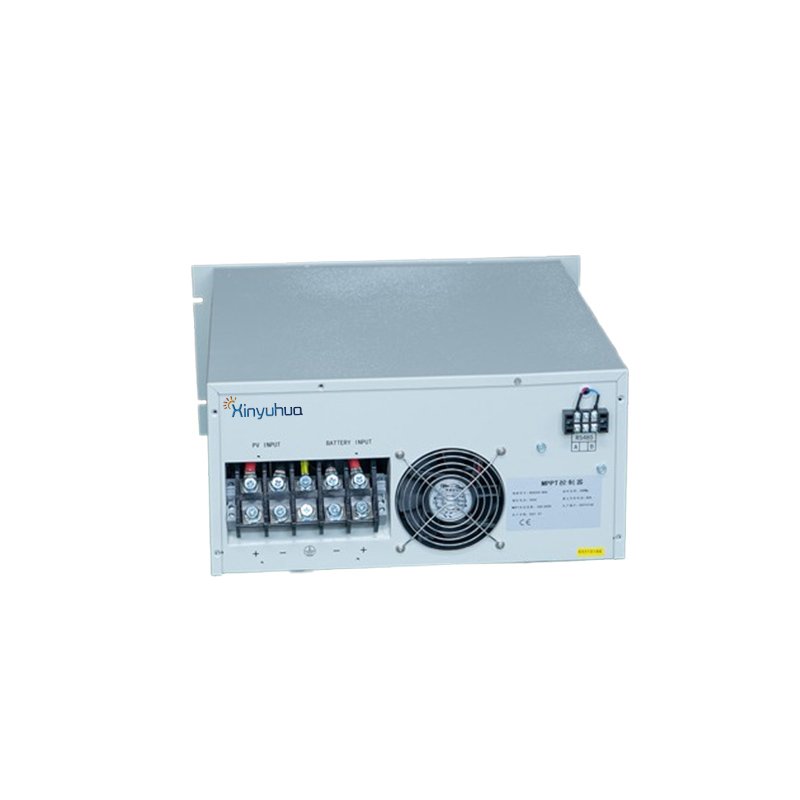

El controlador solar MPPT 576-100A es un controlador de carga solar avanzado, diseñado para mejorar la eficiencia de conversión de energía al optimizar el seguimiento de la energía solar.
| Model | XSD576-100A | |
| Controoler spec. | Rated voltage(V) | 576 |
| Controoler spec. | Rated charging current(A) | 100 |
| Controoler spec. | Max. input voltage from battery(V) | 700 |
| Controoler spec. | Max. Input solar voltage(V) | 900 |
| Controoler spec. | Max. Input solar power(W) | 57600 |
| Controoler spec. | Input solar panel No. | 1 |
| Controoler spec. | Charging mode | MPPT |
| Controoler spec. | Battery float voltage（Vdc） | 691(can be set) |
| Controoler spec. | Battery charging average voltage（Vdc） | 576 |
| Controoler spec. | Self loss（mA） | ＜300 |
| Controoler spec. | Communication | RS485 |
| Controoler spec. | Rated efficiency | ≥95% |
| Controoler spec. | Protect degree | IP20 |
| Working enviroment | 工working temperature | -20℃～+50℃ |
| Working enviroment | Relative humidity | ＜90% No condensing |
| Working enviroment | Altitude | 2000m |
| Working enviroment | Pressure endurance insulation | 1500VAC，1minute |
| Noise（1meter） | ≤50dB | |
| Protection function | Protection for input connecting contrary, input short of voltage, output over load, output short circuit and over heat. | |
| protect breaker | need extra input and output braker | |
| dimension（W*L*H）mm | 482*450*222(5U) | |
