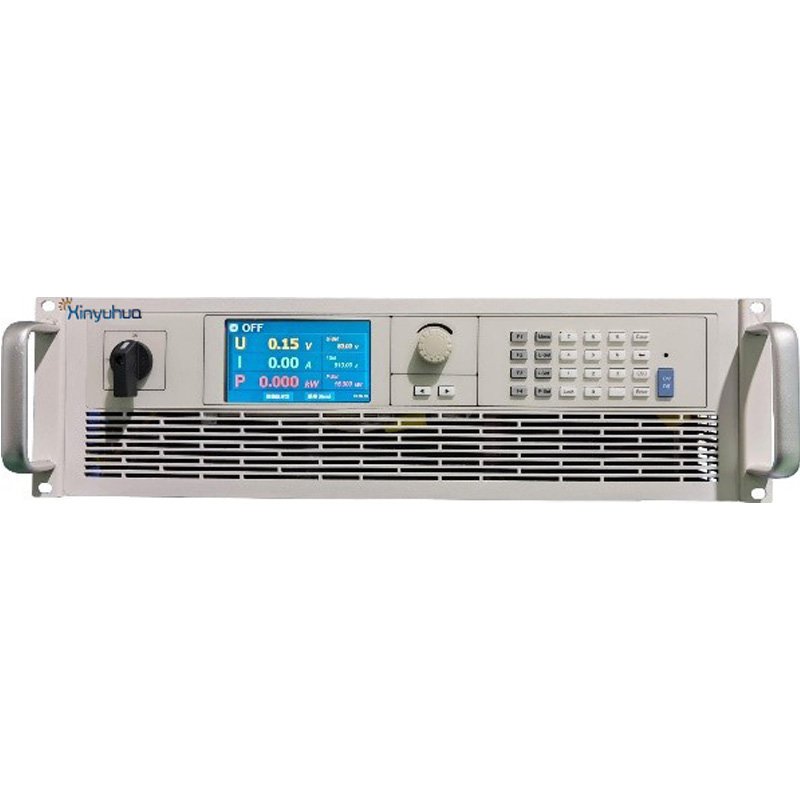

El simulador de paneles fotovoltaicos adopta aislamiento de alta frecuencia y tecnología PFC activa, combinada con la avanzada tecnología de conmutación suave multiresonante LLC, y ofrece una eficiencia extremadamente alta en cualquier punto de trabajo. El chasis estándar 3U alcanza una alta potencia de salida de 15 kW. La función de salida de rango automático de esta serie de fuentes de alimentación permite una mayor variedad de combinaciones de voltaje y corriente dentro de todo el rango de potencia, ampliando considerablemente su flexibilidad de uso.
(1) Pantalla táctil a color, operación simple, rápida e intuitiva;
(2) Rango automático, entrada de amplio rango
(3) Voltaje de máquina única de 0-80 V a 0-1500 V, potencia de 0-2 kW a 0-15 kW
(4) Con función de operación en paralelo, amplía la potencia de salida.
(5) Conmutación automática de los modos de tensión constante (CV), corriente constante (CC) y potencia constante (CP)
(6) Con PFC activo, el factor de potencia de entrada puede alcanzar 0,99
(7) Se adopta la tecnología de interruptor suave multiresonante LLC y la eficiencia puede alcanzar el 93 %.
(8) Funciones de protección completas: OVP, OCP, OPP, OTP y protección contra sobretensión/subtensión de entrada
(9) Curvas de prueba estándar múltiples incorporadas para una llamada rápida
(10) Con función de simulación de matriz fotovoltaica
(11) Con función de simulación de batería
(12) Con la función de "caja negra", puede registrar automáticamente los parámetros de funcionamiento en condiciones anormales para su posterior inspección y mantenimiento.
(13) Admite control remoto múltiple, RS232 estándar, RS485 opcional, CAN, LAN, GPIB, control analógico, etc.
Recomendaciones típicas
u Capacidad de salida de amplio rango de rango automático
El simulador de conjunto fotovoltaico amplía el rango de combinación de voltaje y corriente a plena potencia, y el rango de salida de una sola fuente de alimentación es 3 veces mayor que el de una fuente de alimentación tradicional.
Por ejemplo, el simulador fotovoltaico puede proporcionar una salida de corriente de 30 A a 500 V, una salida de corriente de 90 A a 166,6 V y una salida de potencia máxima de 15 kW a cualquier voltaje entre 166,6 y 500 V. Mientras que la fuente de alimentación tradicional de 500 V/15 kW proporciona una salida de corriente de 30 A a 500 V, esta solo puede proporcionar una salida de corriente de 30 A a 166,6 V, y la potencia se reduce a 5 kW.
Simulador de paneles fotovoltaicos Fuente de alimentación normal
u Visualización en tiempo real de la curva de simulación del simulador de conjunto fotovoltaico en modo osciloscopio
El simulador de paneles fotovoltaicos incorpora un modelo SAS que simula la curva IV/PV del panel solar. Tras configurar los parámetros, la curva se genera internamente y se emite para comprobar la eficiencia de seguimiento de potencia máxima estática y dinámica del inversor. Este modo también incluye la función de osciloscopio, que muestra la curva IV/PV en la pantalla táctil y el punto de coordenadas de trabajo actual en tiempo real. Es intuitivo, sencillo y eficiente.

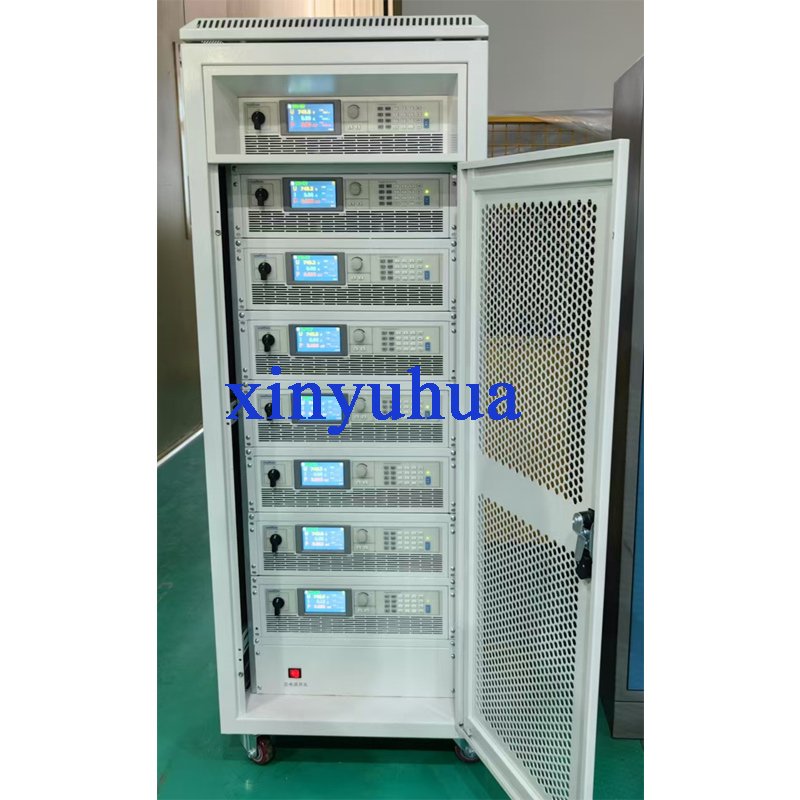

u La función de máquina paralela realiza la expansión
Especulación.:
Product model | XD6380 -120M | XD630 -150M | XD6380 -170 | XD6380 -340 | XD6380 -510 | XD6380 -510X | |
Input | phase | one-phase two-wire+PE | three-phase three-wire+PE | ||||
voltage | 198V~242VAC | 340V~420VAC | |||||
frequency | 47-63HZ | ||||||
Output | voltage | 0～80V | |||||
current | 0~120A | 0~150A | 0~170A | 0~340A | 0~510A | 0~510A | |
power | 0~1.8KW | 0~3KW | 0~5KW | 0~10KW | 0~15KW | 0~18KW | |
Display mode | 4.3 inch colorful LCD screen | ||||||
Voltage resolution | 0.01V | ||||||
Current resolution | 0.01A(＞1000A,0.1A) | ||||||
Power resolution | 0.001kW(＞100kW,0.01kW) | ||||||
Setting accuracy1 | voltage | ≤0.10%F.S. | |||||
current | ≤0.25%F.S. | ||||||
power | ≤1.00%F.S. | ||||||
Measuring accuracy | voltage | ≤0.10%F.S. | |||||
current | ≤0.25%F.S. | ||||||
power | ≤1.00%F.S. | ||||||
Ripples 20Hz~2MHz | Vrms | 30mV | |||||
Vpp | 250mV | ||||||
Load effect | voltage | ≤0.05%F.S. | |||||
current | ≤0.15%F.S. | ||||||
Source effect | voltage | ≤0.02%F.S. | |||||
current | ≤0.05%F.S. | ||||||
Transient response time2 | ≤2ms | ||||||
Rise time | 50ms(10%-90%) | ||||||
Temperature drift | voltage | 0.05% set value | |||||
current | 0.05% set value | ||||||
Typical power factor | ≥0.99 | ||||||
Noise | ≤65dB(A) | ||||||
OVP range | 110%F.S | ||||||
Voltage compensation | Maximum lead voltage reduction compensation: 4V | ||||||
Communication function | Standard:RS-232, optional:485, GPIB, LAN, CAN | ||||||
Protective function | OVP, OCP, OPP, OTP, Vsense reverse protection, input OV/LV protection | ||||||
Analog interface(optional) | Start, stop, alarm, 0-5V, 0-10V or 4-20mA | ||||||
Efficiency | ～93% | ||||||
Operating temperature | 0~40℃ | ||||||
Storage temperature | -10~70℃ | ||||||
Humidity | 20%~90%,no condensation | ||||||
Volume | 19" Standard chassis 3U height 482×133.3×610 | ||||||
Weight | 17kg | 17kg | 18kg | 29kg | 40kg | 41kg | |
Remark | 1. Set the test condition of accuracy/measurement accuracy as (25℃±5℃); 2. The time it takes for the output voltage to return to within "0.75% of the stable value" when the load changes from 100% to 50% or reverse. | ||||||
Product model | XD63300 -30M | XD63300 -40M | XD63300 -50 | XD63300 -100 | XD63300 -150 | XD63300 -150 | ||||||
Input | phase | one-phase two-wire+PE | three-phase three-wire+PE | |||||||||
voltage | 198V~242VAC | 340V~420VAC | ||||||||||
frequency | 47-63HZ | |||||||||||
Output | voltage | 0～300V | ||||||||||
current | 0~30A | 0~40A | 0~50A | 0~100A | 0~150A | 0~150A | ||||||
power | 0~1.8KW | 0~3KW | 0~5KW | 0~10KW | 0~15KW | 0~18KW | ||||||
Display mode | 4.3 inch colorful LCD screen | |||||||||||
Voltage resolution | 0.01V | |||||||||||
Current resolution | 0.01A(＞1000A,0.1A) | |||||||||||
Power resolution | 0.001kW(＞100kW,0.01kW) | |||||||||||
Setting accuracy1 | voltage | ≤0.10%F.S. | ||||||||||
current | ≤0.25%F.S. | |||||||||||
power | ≤1.00%F.S. | |||||||||||
Measuring accuracy | voltage | ≤0.10%F.S. | ||||||||||
current | ≤0.25%F.S. | |||||||||||
power | ≤1.00%F.S. | |||||||||||
Ripples 20Hz~2MHz | Vrms | 50mV | ||||||||||
Vpp | 450mV | |||||||||||
Load effect | voltage | ≤0.05%F.S. | ||||||||||
current | ≤0.15%F.S. | |||||||||||
Source effect | voltage | ≤0.02%F.S. | ||||||||||
current | ≤0.05%F.S. | |||||||||||
Transient response time2 | ≤5ms | |||||||||||
Rise time | 50ms(10%-90%) | |||||||||||
Temperature drift | voltage | 0.05% set value | ||||||||||
current | 0.05% set value | |||||||||||
Typical power factor | ≥0.99 | |||||||||||
Noise | ≤65dB(A) | |||||||||||
OVP range | 110%F.S. | |||||||||||
Voltage compensation | Maximum lead voltage reduction compensation: 3V | |||||||||||
Communication function | Standard:RS-232, optional:485, GPIB, LAN, CAN | |||||||||||
Protective function | OVP, OCP, OPP, OTP, Vsense reverse protection, input OV/LV protection | |||||||||||
Analog interface(optional) | Start, stop, alarm, 0-5V, 0-10V or 4-20mA | |||||||||||
Efficiency | ～93% | |||||||||||
Operating temperature | 0~40℃ | |||||||||||
Storage temperature | -10~70℃ | |||||||||||
Humidity | 20%~90%,no condensation | |||||||||||
Volume | 19" Standard chassis 3U height 482×133.3×610 | |||||||||||
Weight | 17kg | 17kg | 18kg | 29kg | 40kg | 41kg | ||||||
Remark | 1. Set the test condition of accuracy/measurement accuracy as (25℃±5℃); 2. The time it takes for the output voltage to return to within "0.75% of the stable value" when the load changes from 100% to 50% or reverse. | |||||||||||
Product model | XD63500-30 | XD63500-60 | XD63500-90 | |
Input | phase | three-phase three-wire+PE | ||
voltage | 340V~420VAC | |||
frequency | 47-63HZ | |||
Output | voltage | 0～500V | ||
current | 0~30A | 0~60A | 0~90A | |
power | 0~5KW | 0~10KW | 0~15KW | |
Display mode | 4.3 inch colorful LCD screen | |||
Voltage resolution | 0.01V | |||
Current resolution | 0.01A(＞1000A,0.1A) | |||
Power resolution | 0.001kW(＞100kW,0.01kW) | |||
Setting accuracy1 | voltage | ≤0.10%F.S. | ||
current | ≤0.25%F.S. | |||
power | ≤1.00%F.S. | |||
Measuring accuracy | voltage | ≤0.10%F.S. | ||
current | ≤0.25%F.S. | |||
power | ≤1.00%F.S. | |||
Ripples 20Hz~2MHz | Vrms | 70mV | ||
Vpp | 700mV | |||
Load effect | voltage | ≤0.05%F.S. | ||
current | ≤0.15%F.S. | |||
Source effect | voltage | ≤0.02%F.S. | ||
current | ≤0.05%F.S. | |||
Transient response time2 | ≤2ms | |||
Rise time | 50ms(10%-90%) | |||
Temperature drift | voltage | 0.05% set value | ||
current | 0.05% set value | |||
Typical power factor | ≥0.99 | |||
Noise | ≤65dB(A) | |||
OVP range | 110%F.S | |||
Voltage compensation | Maximum lead voltage reduction compensation: 25V | |||
Communication function | Standard:RS-232, optional:485, GPIB, LAN, CAN | |||
Protective function | OVP, OCP, OPP, OTP, Vsense reverse protection, input OV/LV protection | |||
Analog interface(optional) | Start, stop, alarm, 0-5V, 0-10V or 4-20mA | |||
Efficiency | ～93% | |||
Operating temperature | 0~40℃ | |||
Storage temperature | -10~70℃ | |||
Humidity | 20%~90%,no condensation | |||
Volume | 19" Standard chassis 3U height 482×133.3×610 | |||
Weight | 18kg | 29kg | 40kg | |
Remark | 1. Set the test condition of accuracy/measurement accuracy as (25℃±5℃); 2. The time it takes for the output voltage to return to within "0.75% of the stable value" when the load changes from 100% to 50% or reverse. | |||
Product model | XD63500 -20M | XD63500 -30M | XD63500 -40 | XD63500 -80 | XD63500 -120 | XD63500 -120X | |
Input | phase | one-phase two-wire+PE | three-phase three-wire+PE | ||||
voltage | 198V~242VAC | 340V~420VAC | |||||
frequency | 47-63HZ | ||||||
Output | voltage | 0～500V | |||||
current | 0~20A | 0~30A | 0~40A | 0~80A | 0~120A | 0~120A | |
power | 0~1.8KW | 0~3KW | 0~5KW | 0~10KW | 0~15KW | 0~18KW | |
Display mode | 4.3 inch colorful LCD screen | ||||||
Voltage resolution | 0.01V | ||||||
Current resolution | 0.01A(＞1000A,0.1A) | ||||||
Power resolution | 0.001kW(＞100kW,0.01kW) | ||||||
Setting accuracy1 | voltage | ≤0.10%F.S. | |||||
current | ≤0.25%F.S. | ||||||
power | ≤1.00%F.S. | ||||||
Measuring accuracy | voltage | ≤0.10%F.S. | |||||
current | ≤0.25%F.S. | ||||||
power | ≤1.00%F.S. | ||||||
Ripples 20Hz~2MHz | Vrms | 70mV | |||||
Vpp | 700mV | ||||||
Load effect | voltage | ≤0.05%F.S. | |||||
current | ≤0.15%F.S. | ||||||
Source effect | voltage | ≤0.02%F.S. | |||||
current | ≤0.05%F.S. | ||||||
Transient response time2 | ≤2ms | ||||||
Rise time | 50ms(10%-90%) | ||||||
Temperature drift | voltage | 0.05% set value | |||||
current | 0.05% set value | ||||||
Typical power factor | ≥0.99 | ||||||
Noise | ≤65dB(A) | ||||||
OVP range | 110%F.S | ||||||
Voltage compensation | Maximum lead voltage reduction compensation: 25V | ||||||
Communication function | Standard:RS-232, optional:485, GPIB, LAN, CAN | ||||||
Protective function | OVP, OCP, OPP, OTP, Vsense reverse protection, input OV/LV protection | ||||||
Analog interface(optional) | Start, stop, alarm, 0-5V, 0-10V or 4-20mA | ||||||
Efficiency | ～93% | ||||||
Operating temperature | 0~40℃ | ||||||
Storage temperature | -10~70℃ | ||||||
Humidity | 20%~90%,no condensation | ||||||
Volume | 19" Standard chassis 3U height 482×133.3×610 | ||||||
Weight | 17kg | 17kg | 18kg | 29kg | 40kg | 41kg | |
Remark | 1. Set the test condition of accuracy/measurement accuracy as (25℃±5℃); 2. The time it takes for the output voltage to return to within "0.75% of the stable value" when the load changes from 100% to 50% or reverse. | ||||||
Product model | XD63750 -10M | XD63750 -15M | XD63750 -20M | XD63750 -40 | XD63750 -60 | XD63750 -60X | |
Input | phase | one-phase two-wire+PE | three-phase three-wire+PE | ||||
voltage | 198V~242VAC | 340V~420VAC | |||||
frequency | 47-63HZ | ||||||
Output | voltage | 0～750V | |||||
current | 0~10A | 0~15A | 0~20A | 0~40A | 0~60A | 0~60A | |
power | 0~1.8KW | 0~3KW | 0~5KW | 0~10KW | 0~15KW | 0~18KW | |
Display mode | 4.3 inch colorful LCD screen | ||||||
Voltage resolution | 0.1V | ||||||
Current resolution | 0.01A(＞1000A时,0.1A) | ||||||
Power resolution | 0.001kW(＞100kW时,0.01kW) | ||||||
Setting accuracy1 | voltage | ≤0.10%F.S. | |||||
current | ≤0.25%F.S. | ||||||
power | ≤1.00%F.S. | ||||||
Measuring accuracy | voltage | ≤0.10%F.S. | |||||
current | ≤0.25%F.S. | ||||||
power | ≤1.00%F.S. | ||||||
Ripples 20Hz~2MHz | Vrms | 200mV | |||||
Vpp | 800mV | ||||||
Load effect | voltage | ≤0.05%F.S. | |||||
current | ≤0.15%F.S. | ||||||
Source effect | voltage | ≤0.02%F.S. | |||||
current | ≤0.05%F.S. | ||||||
Transient response time2 | ≤2ms | ||||||
Rise time | 50ms(10%-90%) | ||||||
Temperature drift | voltage | 0.05% set value | |||||
current | 0.05% set value | ||||||
Typical power factor | ≥0.99 | ||||||
Noise | ≤65dB(A) | ||||||
OVP range | 110%F.S | ||||||
Voltage compensation | Maximum lead voltage reduction compensation: 37.5V | ||||||
Standard:RS-232, optional:485, GPIB, LAN, CAN | |||||||
Protective function | OVP, OCP, OPP, OTP, Vsense reverse protection, input OV/LV protection | ||||||
Analog interface(optional) | Start, stop, alarm, 0-5V, 0-10V or 4-20mA | ||||||
Efficiency | ～93% | ||||||
Operating temperature | 0~40℃ | ||||||
Storage temperature | -10~70℃ | ||||||
Humidity | 20%~90%,no condensation | ||||||
Volume | 19" Standard chassis 3U height 482×133.3×610 | ||||||
Weight | 17kg | 17kg | 18kg | 29kg | 40kg | 41kg | |
1. Set the test condition of accuracy/measurement accuracy as (25℃±5℃); 2. The time it takes for the output voltage to return to within "0.75% of the stable value" when the load changes from 100% to 50% or reverse. | |||||||
Product model | XD631000 -30 | XD631500 -30 | XD631000 -40 | XD631500 -40 | XD631500 -40X | ||
Input | phase | three-phase three-wire+PE | |||||
voltage | 340V~420VAC | ||||||
frequency | 47-63HZ | ||||||
Output | voltage | 0～1000V | 0～1500V | 0～1000V | 0～1500V | 0～1500V | |
current | 0~30A | 0~30A | 0~40A | 0~40A | 0~40A | ||
power | 0~10KW | 0~15KW | 0~10KW | 0~15KW | 0~18KW | ||
Display mode | 4.3 inch colorful LCD screen | ||||||
Voltage resolution | 0.1V | ||||||
Current resolution | 0.01A(＞1000A时,0.1A) | ||||||
Power resolution | 0.001kW(＞100kW时,0.01kW) | ||||||
Setting accuracy1 | voltage | ≤0.10%F.S. | |||||
current | ≤0.25%F.S. | ||||||
power | ≤1.00%F.S. | ||||||
Measuring accuracy | voltage | ≤0.10%F.S. | |||||
current | ≤0.25%F.S. | ||||||
power | ≤1.00%F.S. | ||||||
Ripples 20Hz~2MHz | Vrms | 350mV | 400mV | 350mV | 400mV | 400mV | |
Vpp | 1600mV | 2400mV | 1600mV | 2400mV | 2400mV | ||
Load effect | voltage | ≤0.05%F.S. | |||||
current | ≤0.15%F.S. | ||||||
Source effect | voltage | ≤0.02%F.S. | |||||
current | ≤0.05%F.S. | ||||||
Transient response time2 | ≤2ms | ||||||
Rise time | 50ms(10%-90%) | ||||||
Temperature drift | voltage | 0.05% set value | |||||
current | 0.05% set value | ||||||
Typical power factor | ≥0.99 | ||||||
Noise | ≤65dB(A) | ||||||
OVP range | 110%F.S | ||||||
Maximum lead voltage reduction compensation | 25V | ||||||
Communication function | Standard:RS-232, optional:485, GPIB, LAN, CAN | ||||||
Protective function | OVP, OCP, OPP, OTP, Vsense reverse protection, input OV/LV protection | ||||||
Analog interface(optional) | Start, stop, alarm, 0-5V, 0-10V or 4-20mA | ||||||
Efficiency | ～93% | ||||||
Operating temperature | 0~40℃ | ||||||
Storage temperature | -10~70℃ | ||||||
Humidity | 20%~90%,no condensation | ||||||
Volume | 19" Standard chassis 3U height 482×133.3×610 | ||||||
Weight | 29kg | 40kg | 29kg | 40kg | 41kg | ||
Remark | 1. Set the test condition of accuracy/measurement accuracy as (25℃±5℃); 2. The time it takes for the output voltage to return to within "0.75% of the stable value" when the load changes from 100% to 50% or reverse. | ||||||
Product model | XD631000-60 | XD631000-60X | XD632250-20 | XD632250-20X | |
Input | phase | three-phase three-wire+PE | |||
voltage | 340V~420VAC | ||||
frequency | 47-63HZ | ||||
Output | voltage | 0～1000V | 0～1000V | 0～2250V | 0～2250V |
current | 0~60A | 0~60A | 0~20A | 0~20A | |
power | 0~15KW | 0~18KW | 0~15KW | 0~18KW | |
Display mode | 4.3 inch colorful LCD screen | ||||
Voltage resolution | 0.1V | ||||
Current resolution | 0.01A(＞1000A时,0.1A) | ||||
Power resolution | 0.001kW(＞100kW时,0.01kW) | ||||
Setting accuracy1 | voltage | ≤0.10%F.S. | |||
current | ≤0.25%F.S. | ||||
power | ≤1.00%F.S. | ||||
Measuring accuracy | voltage | ≤0.10%F.S. | |||
current | ≤0.25%F.S. | ||||
power | ≤1.00%F.S. | ||||
Ripples 20Hz~2MHz | Vrms | 380mV | 600mV | ||
Vpp | 1800mV | 3200mV | |||
Load effect | voltage | ≤0.05%F.S. | |||
current | ≤0.15%F.S. | ||||
Source effect | voltage | ≤0.02%F.S. | |||
current | ≤0.05%F.S. | ||||
Transient response time2 | ≤2ms | ||||
Rise time | 50ms(10%-90%) | ||||
Temperature drift | voltage | 0.05% set value | |||
current | 0.05% set value | ||||
Typical power factor | ≥0.99 | ||||
Noise | ≤65dB(A) | ||||
OVP range | 110%F.S | ||||
Maximum lead voltage reduction compensation | 25V | 37.5V | |||
Communication function | Standard:RS-232, optional:485, GPIB, LAN, CAN | ||||
Protective function | OVP, OCP, OPP, OTP, Vsense reverse protection, input OV/LV protection | ||||
Analog interface(optional) | Start, stop, alarm, 0-5V, 0-10V or 4-20mA | ||||
Efficiency | ～93% | ||||
Operating temperature | 0~40℃ | ||||
Storage temperature | -10~70℃ | ||||
Humidity | 20%~90%,no condensation | ||||
Volume | 19" Standard chassis 3U height 482×133.3×610 | ||||
Weight | 40kg | 41kg | 40kg | 41kg | |
Remark | 1. Set the test condition of accuracy/measurement accuracy as (25℃±5℃); 2. The time it takes for the output voltage to return to within "0.75% of the stable value" when the load changes from 100% to 50% or reverse. | ||||
Suscríbete a nuestro boletín y sé el primero en enterarte de nuestros nuevos lanzamientos de productos.
Agregar: No.220 Huayuan Road Jinan,China
Correo electrónico:skyxo@126.com
Móvil/WeChat/WhatsApp:+86-186 5311 9810
Teléfono:+86-531-58539156
Copyright © Jinan Xinyuhua Energy Technology Co., Ltd. All Rights Reserved. Desarrollado por HiCheng
